How to use Shopify Flow and the Klaviyo Connector

Estimated 6 minute read
|
Updated Aug 29, 2024, 7:39 PM EST
You will learn

You will learn

Learn how to use the Klaviyo Connector with Shopify Flow to track events (to send data from your workflow to Klaviyo) and create campaigns (to send via Klaviyo).

Before you begin

Before you begin

 Knowledge check

If you have not already, read our guide on getting started with Shopify for step-by-step instructions on integrating, before continuing with this article.

What is Shopify Flow?

What is Shopify Flow?

Shopify Flow is an ecommerce automation platform that Shopify stores can use to automate common tasks, such as:

  • Tagging high-value customers
  • Flagging and cancelling high-risk orders
  • Sending reordering requests when your inventory levels become low
  • Identifying and adding tags to products based on their title or SKU

Shopify Flow is an app offered by Shopify in their App Store and is available for those on the Shopify plan and up (it is not available for those on the Basic plan). You can access the app in Shopify's app store and should install it before following the steps in this article.

For Shopify merchants using Flow, there are a number of resources available for understanding what's possible with Flow, and workflows you can download and import into your store:

  1. Workflow examples from Shopify Help Center doc
  2. 14 top workflows blog post
What can I do with Klaviyo Connector for Shopify Flow?

What can I do with Klaviyo Connector for Shopify Flow?

Shopify Connectors is a feature that allows Shopify stores to create app triggers and actions that third-party partners have built.

The Klaviyo Connector supports two actions:

  • Track an event
    This action sends data from your workflow to Klaviyo for it to track.
    • Example workflow
      When a customer's loyalty tier changes, you can track this change in Klaviyo.
    • How it works
      1. This workflow is triggered by LoyaltyLion when a customer moves up a loyalty tier. LoyaltyLion send the tier information to Shopify Flow.
      2. Shopify Flow sends data about the customer to Klaviyo, to track the event, and to LoyaltyLion, to add bonus points the customer's loyalty account.
  • Create a campaign
    This creates and sends a campaign via your Klaviyo account using a specified list or segment and email template.
    • Example workflow
      When you use Shopify’s Launchpad app to plan a sale and execute a theme change for your Shopify store, you can schedule a marketing email to coincide with your theme change using Shopify Flows.
    • How it works
      1. Configure your Klaviyo email template with details of your theme change.
      2. Use the ID for your desired list or segment to create the campaign within Shopify Flows.
How to use the Klaviyo Connector

How to use the Klaviyo Connector

In a Shopify Flow, you can add actions into a workflow.

  1. When in the Select an action menu, you can choose from Standard Actions developed by Shopify or additional actions developed by third-party apps. This is where you'll find the Klaviyo Connector if it's installed.
  2. The two actions available in the Klaviyo Connector are Track an event and Create a campaign.
    Workflow example in Shopify Flow using Klaviyo Connector with a Select Action box outlined in blue
Track an event

Track an event

Once you choose the Track an Event action, you'll need to fill out the following fields:

  • Klaviyo Public API Key
    Learn how to locate your public API key in Klaviyo.
  • Event Name
    Name of the event you want to track. This will appear on the customer profile's event timeline.
  • Customer Email Address
    Email of the person going through the Flow whose activity will be tracked in Klaviyo.
  • Customer First Name
    First name of the person going through the Flow whose activity will be tracked in Klaviyo.
  • Customer Last Name
    Last name of the person going through the Flow whose activity will be tracked in Klaviyo.
  • Customer Properties
    Hash dictionary of customer properties to be included in their Klaviyo profile as a custom field.

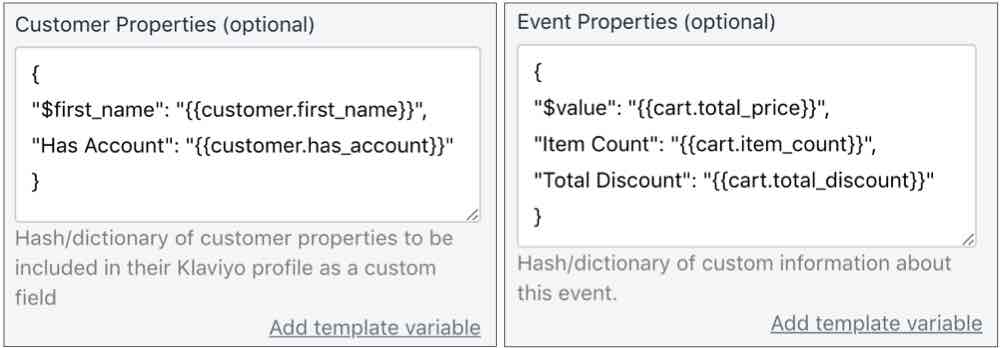

    Customer properties box with first name and Has Account, and Event properties box with value, item count, and total discount
  • Event Properties
    Hash dictionary of custom information about this event.

It is important to note that anything sent as a list, such as customer or event properties, will need to be formatted as a JSON list to appear properly in Klaviyo. For example, you could format customer tags in the following way:
{"tags": [{% for tags_item in customer.tags %}{% if forloop.first != true %},{% endif %}{{ tags_item | json}}{% endfor %}]}

These events will be tracked in Klaviyo as Shopify events, as indicated by the Shopify icon alongside each event. To view your Shopify Flow event data:

  1. Click the Analytics dropdown in Klaviyo and select Metrics
  2. Select Shopify from the dropdown menu. The tab will display only the events synced from Shopify.

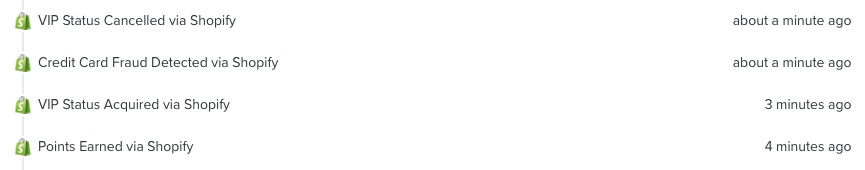

    Timeline of Shopify metrics in Klaviyo with metrics such as VIP status cancelled and credit card fraud detected
Create a campaign

Create a campaign

Once you choose the Create a Campaign action, you will need to fill out the following fields:

  • Private API Key
    Learn how to locate your private API key in Klaviyo. If you do not have one associated with your account yet, you may create one on this page. Your private API key should always be kept secret and should not be shared.
  • List or Segment ID
    Click the Audience dropdown in Klaviyo and select Lists & Segments. Click on your chosen list or segment, select the Settings tab, then copy the six-character code displayed here and enter it into the corresponding field.
  • Template ID
    Click the Content dropdown in Klaviyo and select Templates. Click into your preferred email template, then copy the six-character code from the URL (the template ID) and enter it into the corresponding field.
  • Sender Email Address
    The email address that your recipients will see.
  • Sender Name
    The name that your recipients will see.
  • Subject
    The email subject line that will be used for your campaign.
  • Campaign Name
    Your campaign’s name. After sending, you will be able to find and observe performance for your campaign in your Klaviyo account.
  • Enable Smart Sending? (Optional)
    Enabling Smart Sending will skip recipients who have recently received an email from you.
  • Use UTM Tracking? (Optional)
    Links in this campaign will include additional tracking information (UTM parameters) in third-party reporting tools like Google Analytics.
Troubleshooting

Troubleshooting

Is your data not showing in Klaviyo as expected?

Is your data not showing in Klaviyo as expected?

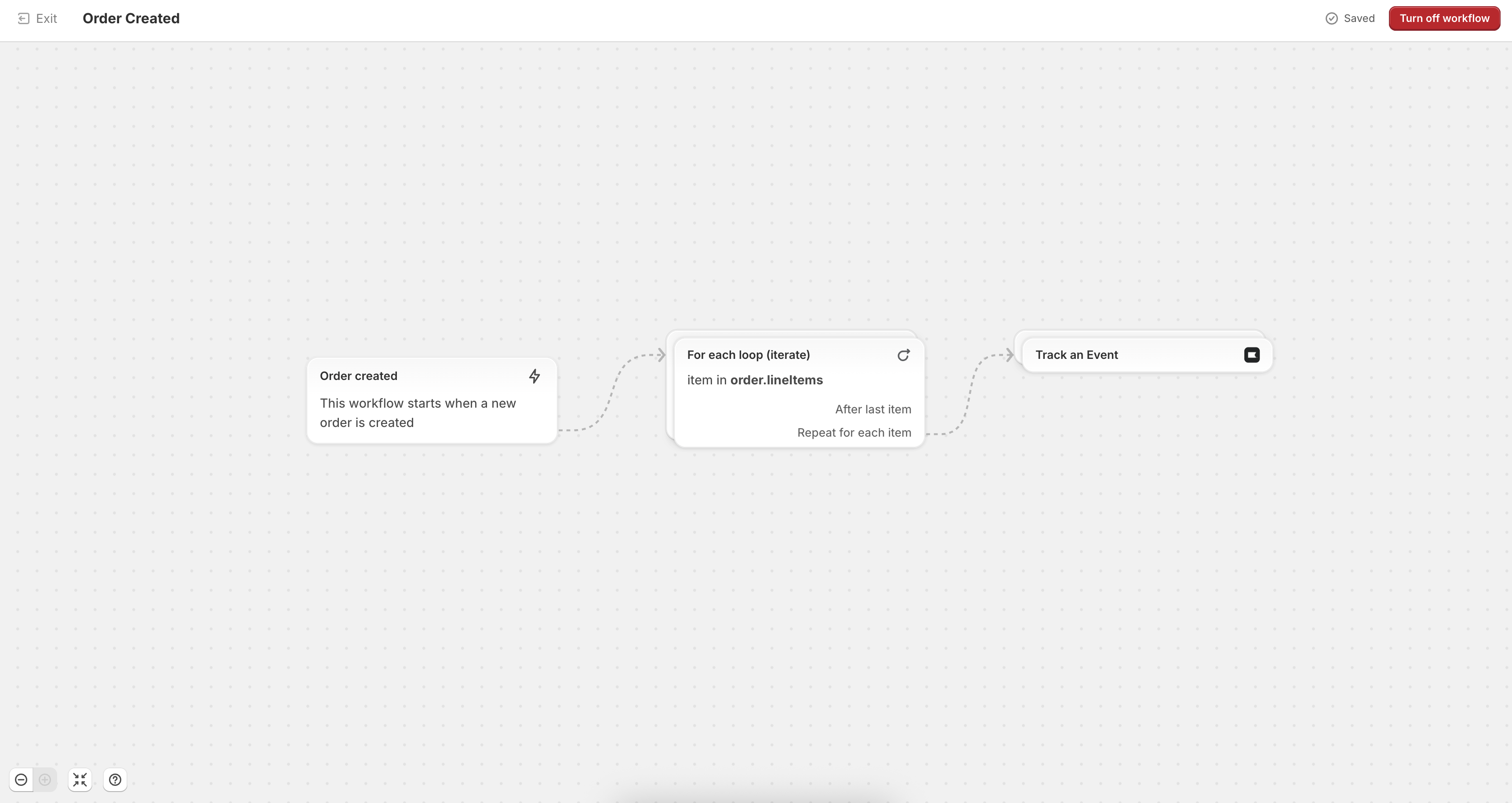

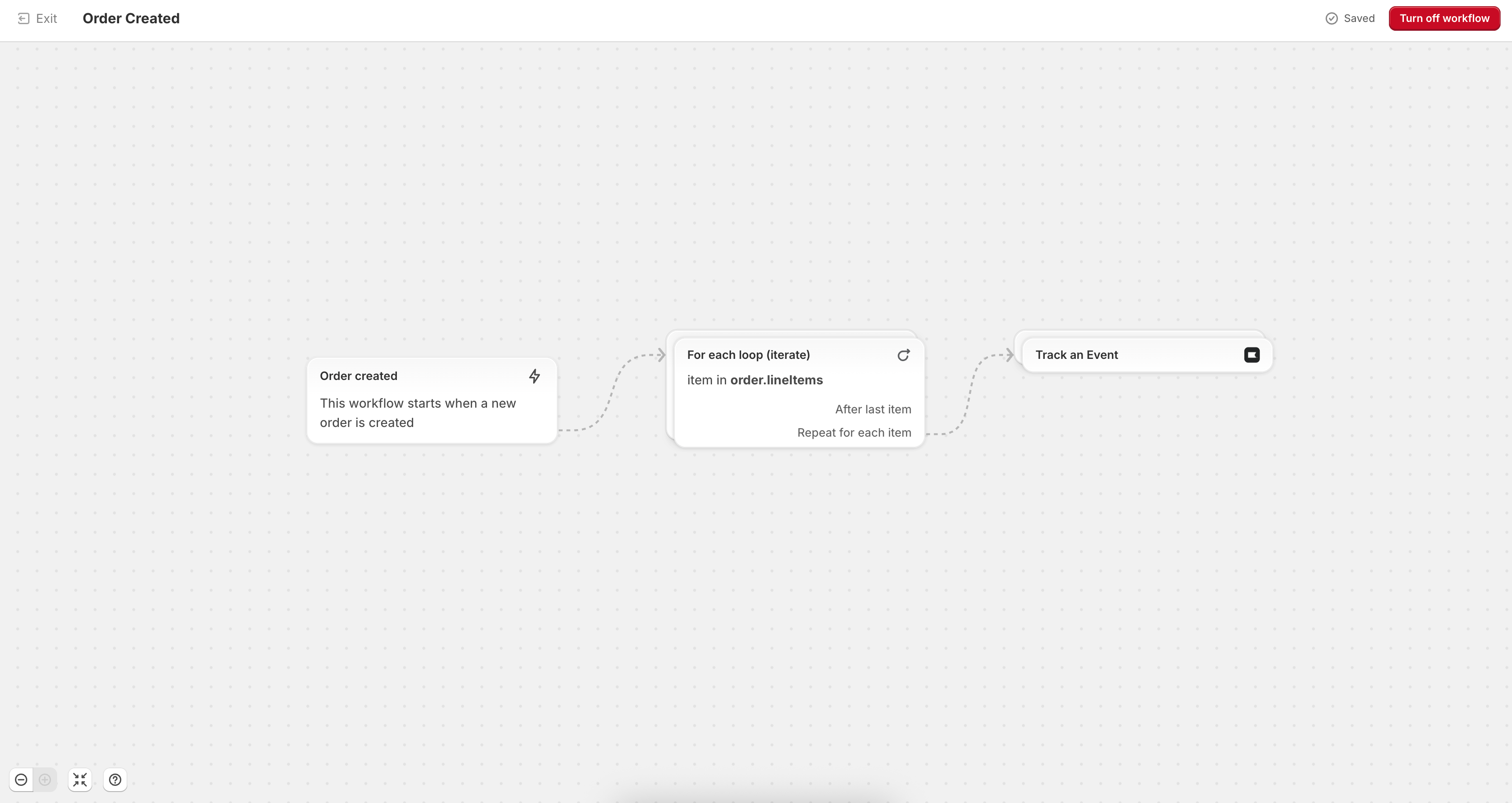

Make sure that the Customer Properties box and the Event Properties box are valid JSON. If the input is not valid JSON, the Track an Event step will not pass data into Klaviyo as expected. For example, your data variables may include for-loop statements. When the for-loop statements are evaluated, they might leave trailing spaces due to the new line that the variables exist on within the for-loop syntax:

"{% for lineItems_item in order.lineItems %}
{{lineItems_item.name}}
{% endfor %}"

This will not be ingested by Klaviyo due to it being invalid JSON. To resolve, remove the line breaks in between the syntax of the for-loop like this:

"{% for lineItems_item in order.lineItems %}{{lineItems_item.name}}{% endfor %}"
Outcome

Outcome

You've now learned how to use the Klaviyo Connector with Shopify Flow to track events and create campaigns.
