You will learn
Learn how to sync data from Klaviyo to your data warehouse, and import warehouse data to Klaviyo via SFTP. You can sync your customer profile and event data, allowing you to store and analyze key information about your customers outside of Klaviyo.
Advanced KDP and Marketing Analytics are not included in Klaviyo’s standard marketing application, and a subscription is required to access the associated functionality. Head to our billing guide to learn about how to purchase these plans.
Before you begin
You will need to ensure that the data warehouse you are connecting with is configured as a destination. To make sure you have set this up correctly:
- Make sure the user that is provided to Klaviyo has the right permissions
- Make sure to set tables with the appropriate names, shown below, based on your warehouse.
Additionally, make sure to allowlist Klaviyo's outbound data warehouse traffic IP addresses. This will ensure that Klaviyo's requests are not blocked by your security layer. These addresses are represented by the following CIDR ranges:
184.72.183.187/3252.206.71.52/323.227.146.32/3244.198.39.11/3235.172.58.121/323.228.37.244/3254.88.219.8/323.214.211.176/32
Connect to a data warehouse
To add a data warehouse connection to Klaviyo, navigate to Advanced KDP > Data management > Syncing.
- To add a data warehouse, click the New connection button.
- On the Select a destination modal, select a supported data warehouse to connect with Klaviyo.
You can only have 1 data warehouse destination per account.
Alternatively, you can select your data warehouse from Klaviyo’s integration directory by going to Account > Integration.

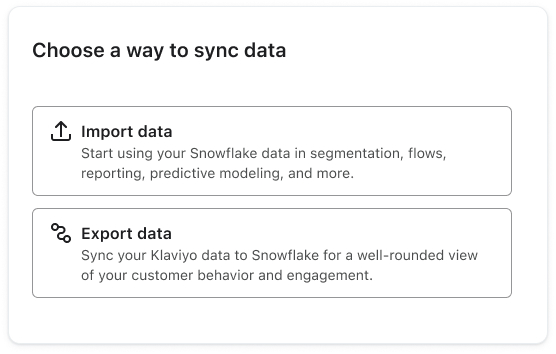

When connecting a warehouse, you can either import data from your data warehouse to Klaviyo, or set a warehouse as an outbound sync destination.
Import data via SFTP
If you’d like to import data from your data warehouse into Klaviyo, you can do this via SFTP.
To import your data into Klaviyo, select Import data when first connecting a warehouse destination, or click the Import button on the Data syncing page if you already have a connection established.
The process to import warehouse data into Klaviyo is as follows:
- Export your desired data from your data warehouse.
- Generate SSH keys on your local machine.
- Configure SFTP client and import.
This is demonstrated with Snowflake, but the import process is similar regardless of your warehouse integration.
Export your database
First, you’ll need to export your data from your warehouse. Log into your warehouse and export the data you’d like to import to Klaviyo into a CSV file.
Format your exported data based on the CSV format and size limitations.
Generate SSH keys on your local machine
Once you have your desired data exported from your warehouse, generate a new SSH key on your local machine and add it to Klaviyo by selecting the Add SSH key button.
When adding your key, make sure it starts with one of the following:
- Ssh-ras
- Ecdsa-sha2
- Ssh-ed
- Sk-ecdsa
- sk-ssh

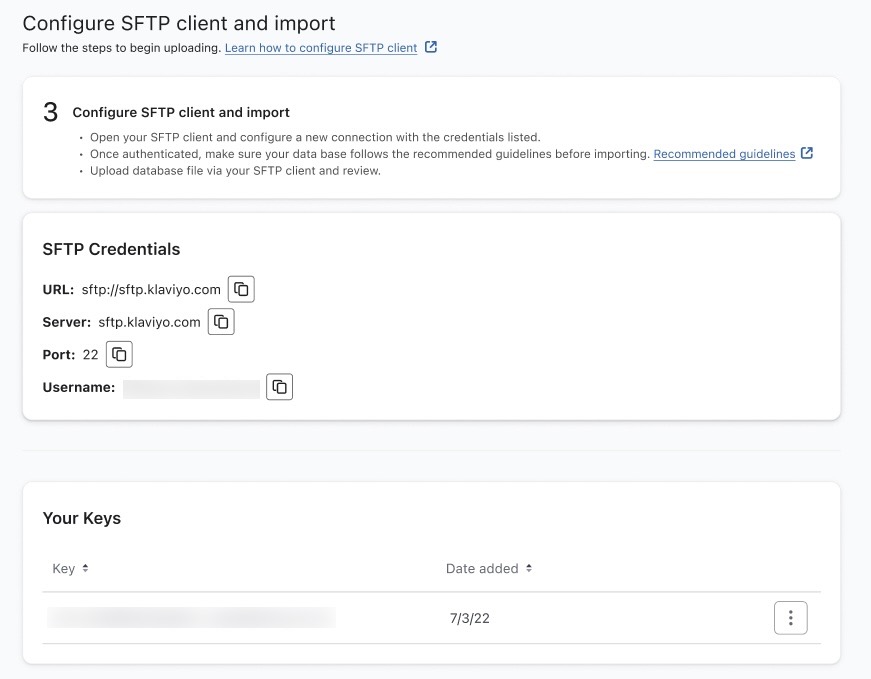

Configure SFTP client and import
Once your SSH key has been successfully added to Klaviyo, you’ll need to configure your SFTP client and import the data.
- Open your SFTP client and configure a new connection with the credentials presented in Klaviyo. You’ll see the credentials presented after successfully adding your SSH key.
- Once authenticated, make sure your database follows the recommended guidelines before importing.
- Upload your database file via your SFTP client and review.

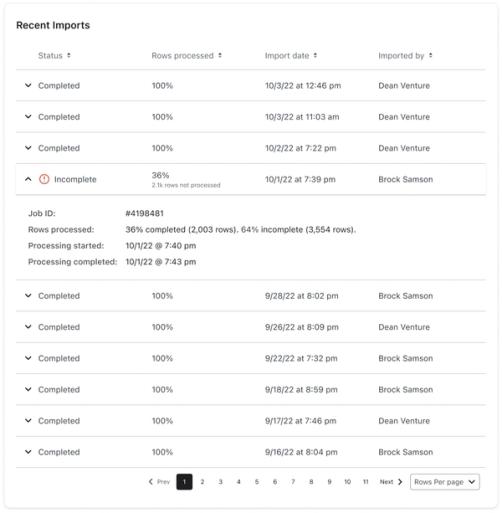

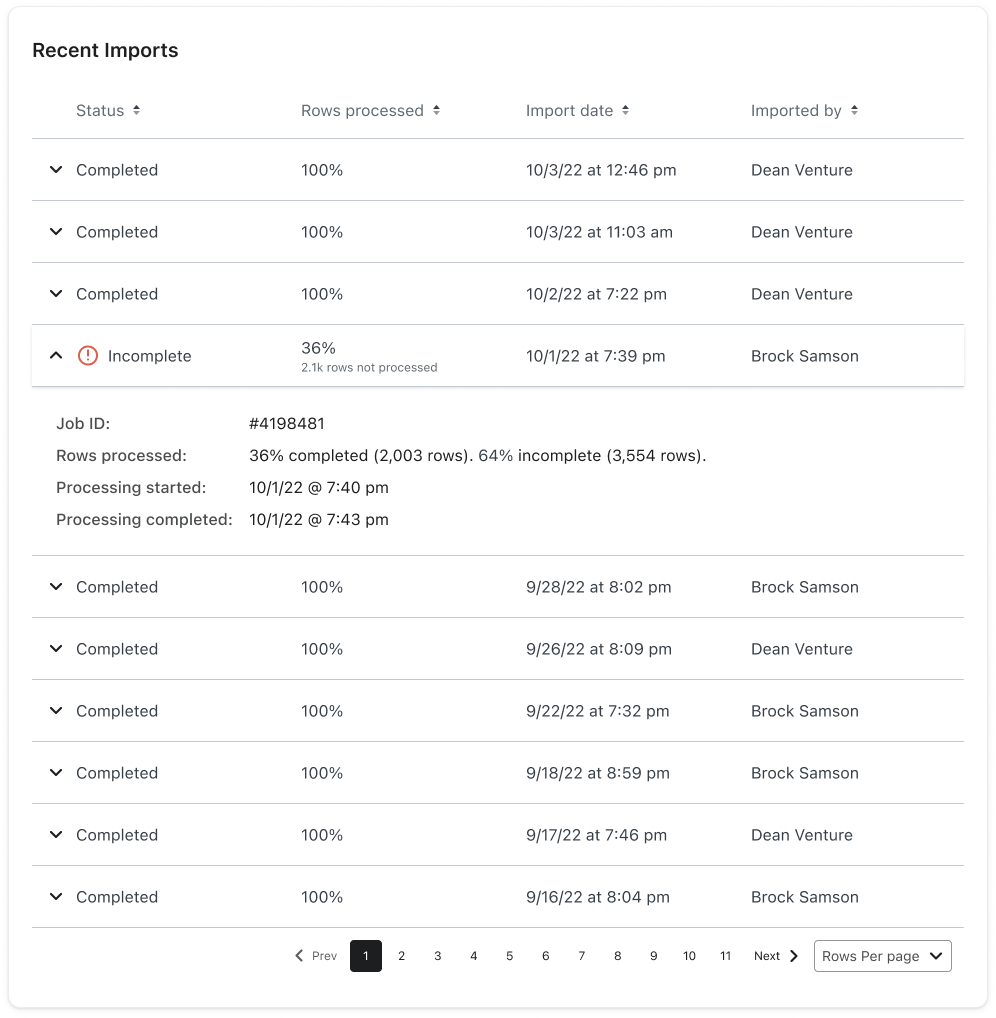

You’ll also see a list view of your recent imports with the following information:
-
Status
Completed or incomplete. -
Rows processed
Percentage of total rows processed so far. -
Import date
Date of import. -
Imported by
User that imported data.
Export data to your warehouse
To configure your data warehouse as destination, you’ll need the following set of information and credentials for each data warehouse.
Amazon Redshift
To configure Amazon Redshift as a destination, run the following script to create the klaviyo_event and klaviyo_profile tables.

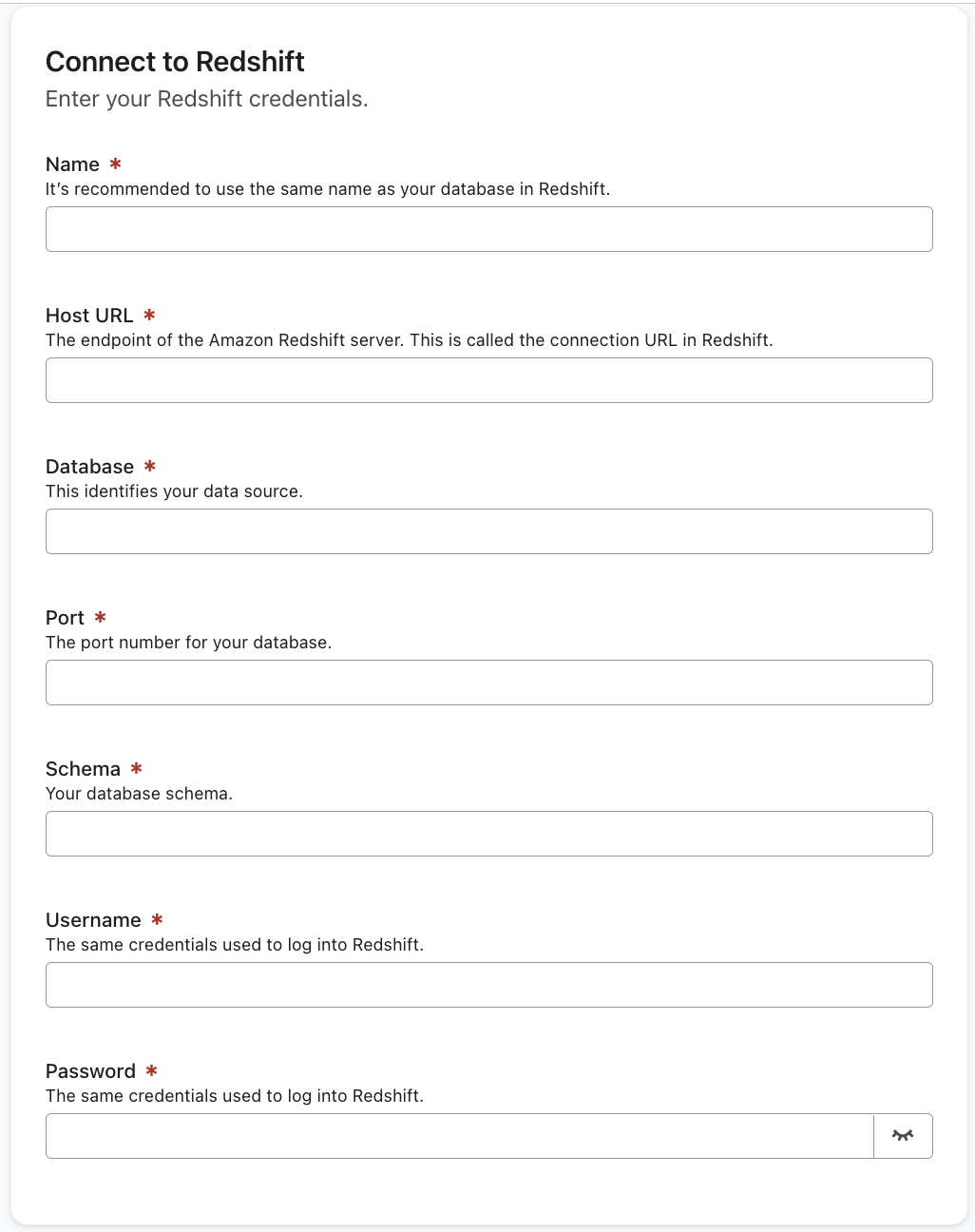

Once configured as a destination, connect your warehouse with Klaviyo using the following set of credentials:
- Name: The name of your database in Redshift (it’s recommend to use the same same name as your database in Redshift)
- Host URL: The endpoint of the Amazon Redshift server (called the connection URL in Redshift)
- Database: The name to identify your data source
- Port: The port number used by Redshift
- Schema: Your database schema
- Username: The username used for logging into Redshift
-
Database password: The password used for logging into Redshift

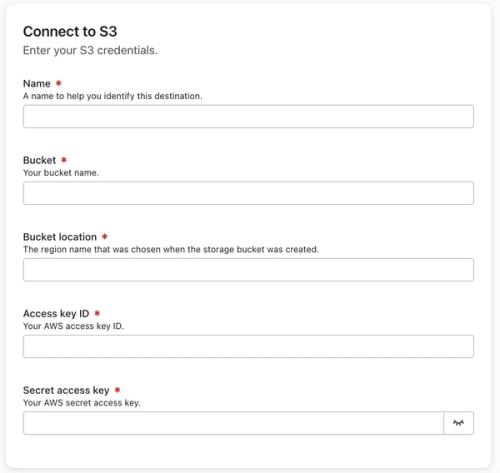

Amazon S3
To configure Amazon S3 as a destination, set the table names to klaviyo_profile and klaviyo_event.

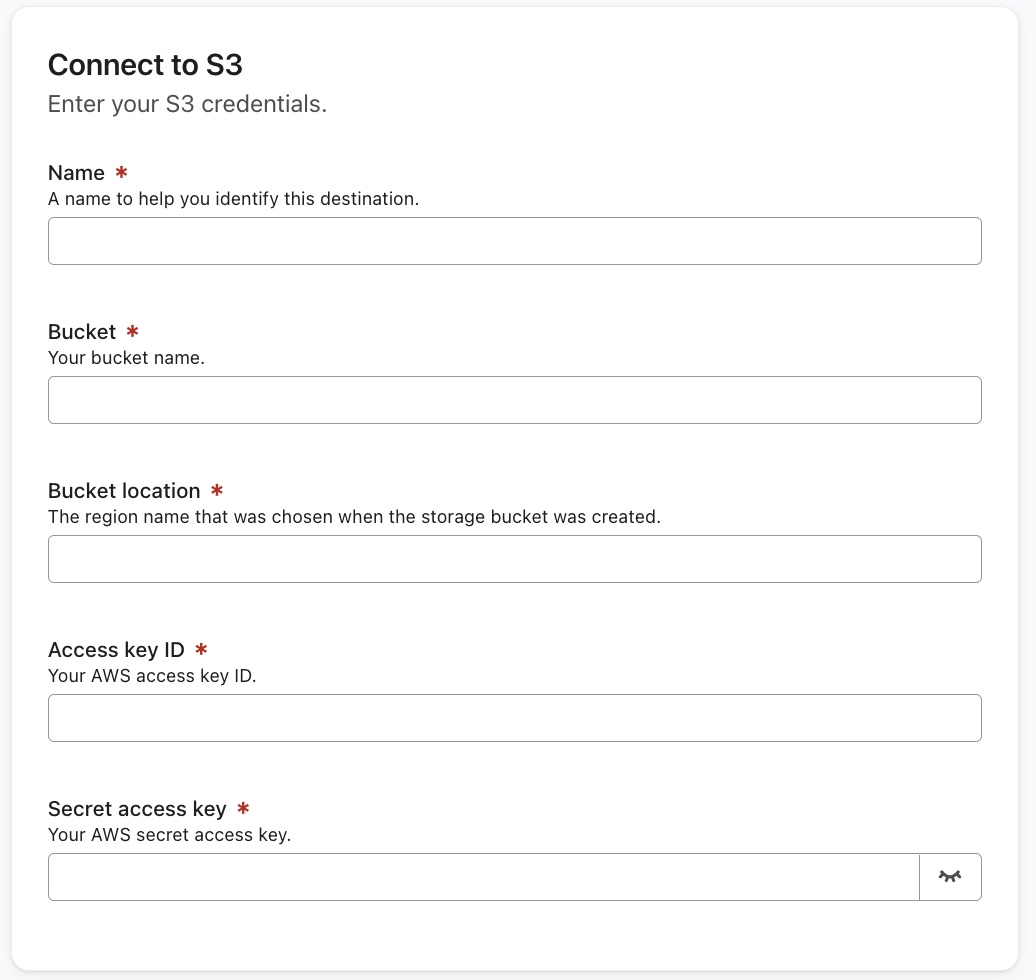

Once configured as a destination, connect your warehouse with Klaviyo using the following set of credentials:
- Name: The machine readable name for Amazon S3 database.
- Bucket: Your bucket name.
- Bucket location: The region name that was chosen when the storage bucket was created.
- Access key ID: Your AWS access key ID.
-
Secret access key: Your AWS secret access key.
Google BigQuery
To configure Google BigQuery as a destination, run the following script to set the klaviyo_profile and klaviyo_event tables. Your Google BigQuery account must have a payment profile for the connection process to be successful.
Note that in this script you must replace the placeholder "SERVICE ACCOUNT EMAIL" with your BigQuery service account email.

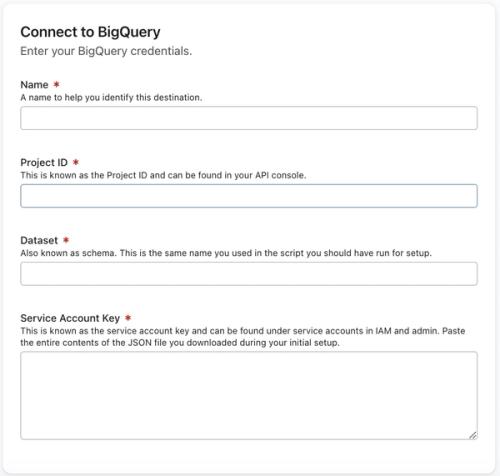

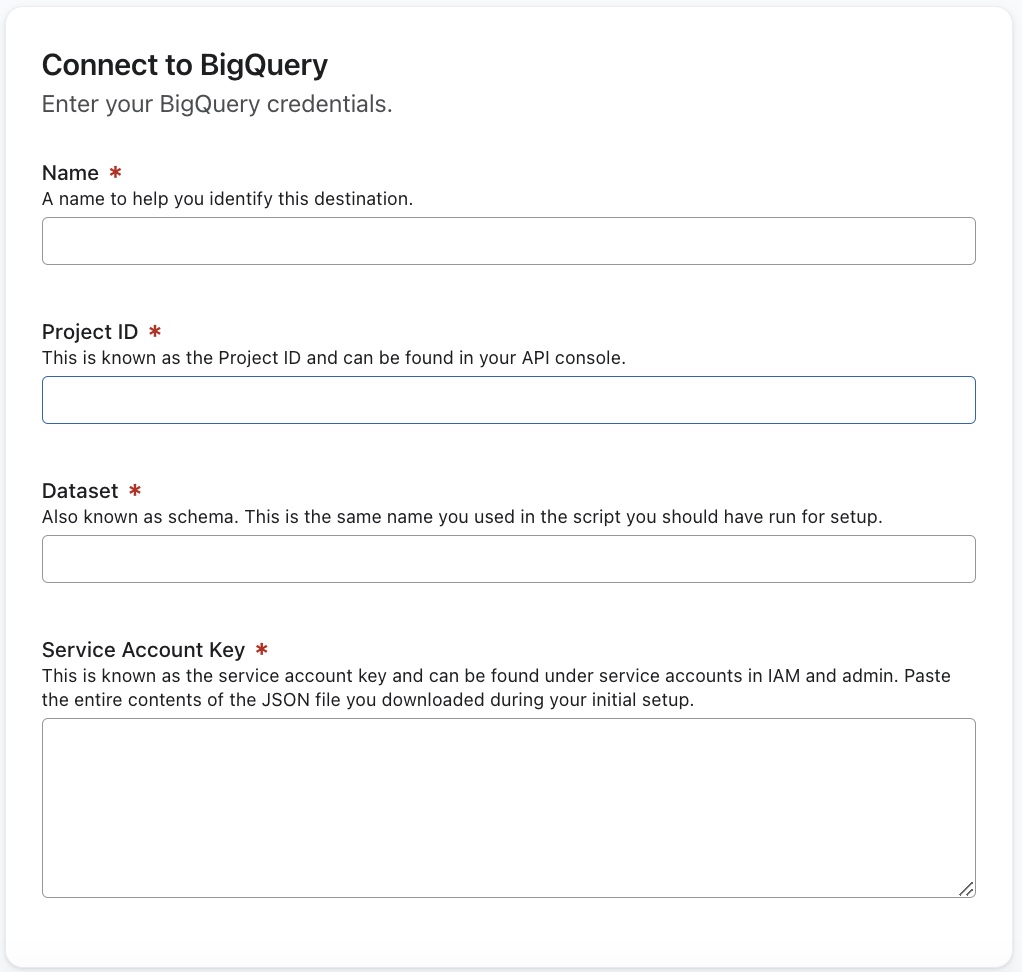

Once configured as a destination, connect your warehouse with Klaviyo using the following set of credentials:
- Name: A name to help your identify this destination
- Project ID: This is known as the Project ID and can be found in your API console.
- Dataset: Also known as schema. This is the same name you used in the script you should have run for setup.
-
Service account key: Paste the entire contents of the JSON file you downloaded when creating your service account in BigQuery.
Microsoft Azure Synapse Analytics

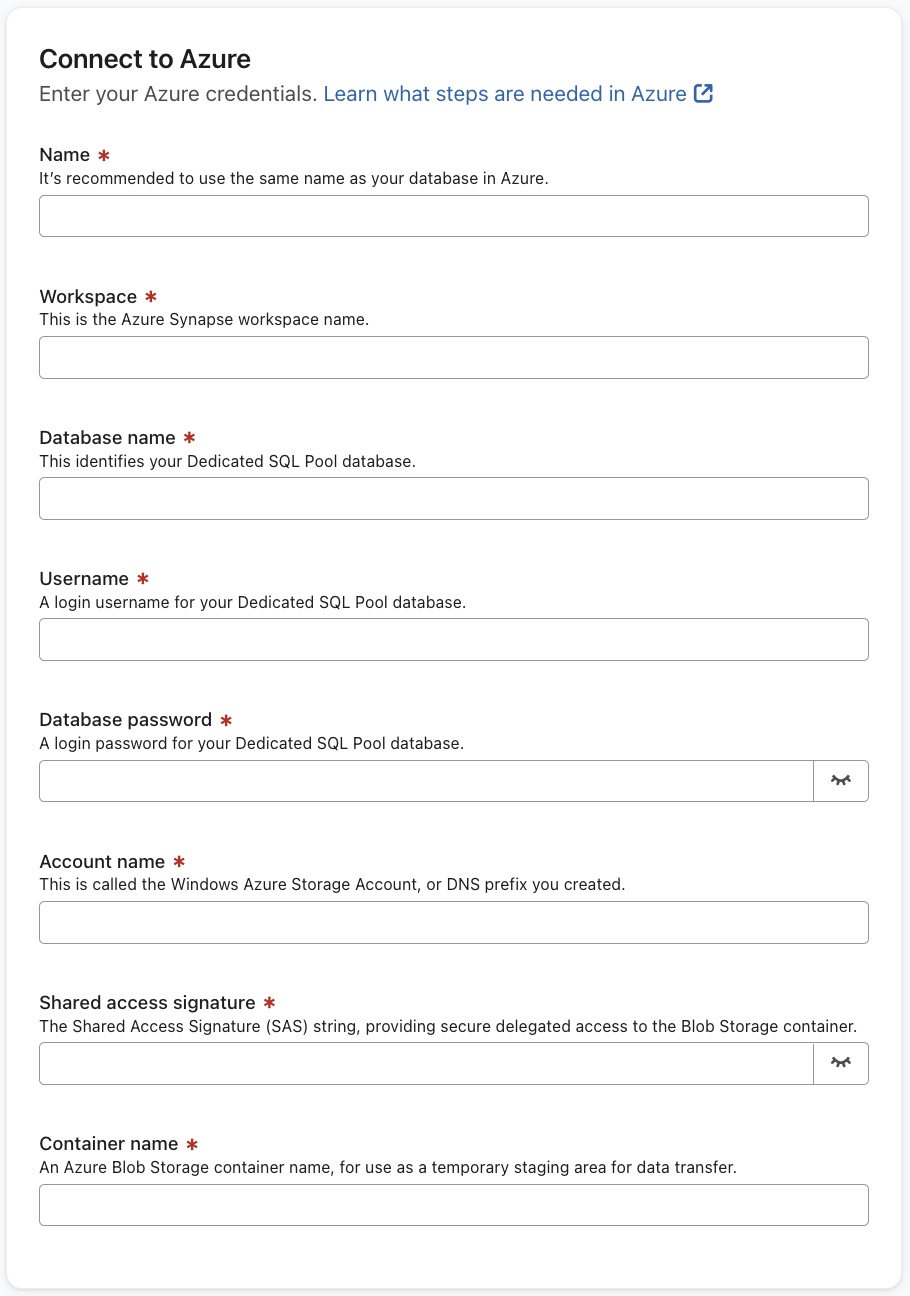

To configure Microsoft Azure as a destination, run the following script to create the klaviyo_profile and klaviyo_event tables.
- Name: It is recommended to use the same name as your database in Azure.
- Workspace: The Azure Synapse workspace name.
- Database name: This identifies your Dedicated SQL Pool database.
- Username: Your login username for your Dedicated SQL Pool database.
- Database password:Your login password for your Dedicated SQL Pool database.
- Account name: Your Windows Azure storage account, or DNS prefix you created.
- Access signature: Your shared access signature (SAS) string that proves access to the Blob Storage container.
-
Container name: The Azure Blob container name for temporary staging area for data transfer.
Snowflake
To configure Snowflake as a destination, take the following steps:
1. Generate a private key by running the following command in your terminal:
openssl genrsa 2048 | openssl pkcs8 -topk8 -inform PEM -out rsa_key.p8 -nocrypt
2. Generate a public key that references the private key by running the following command in your terminal:
openssl rsa -in rsa_key.p8 -pubout -out rsa_key.pub
3. Run the following script to set the KLAVIYO_PROFILE, KLAVIYO_EVENT, and KLAVIYO_METRIC tables. You must have securityadmin and sysadminprivileges in order to complete the setup below. To review what role(s) you have, run SHOW GRANTS TO USER <your_username> and ensure that you have both roles listed. Reach out to a system administrator if you need to have your role adjusted.

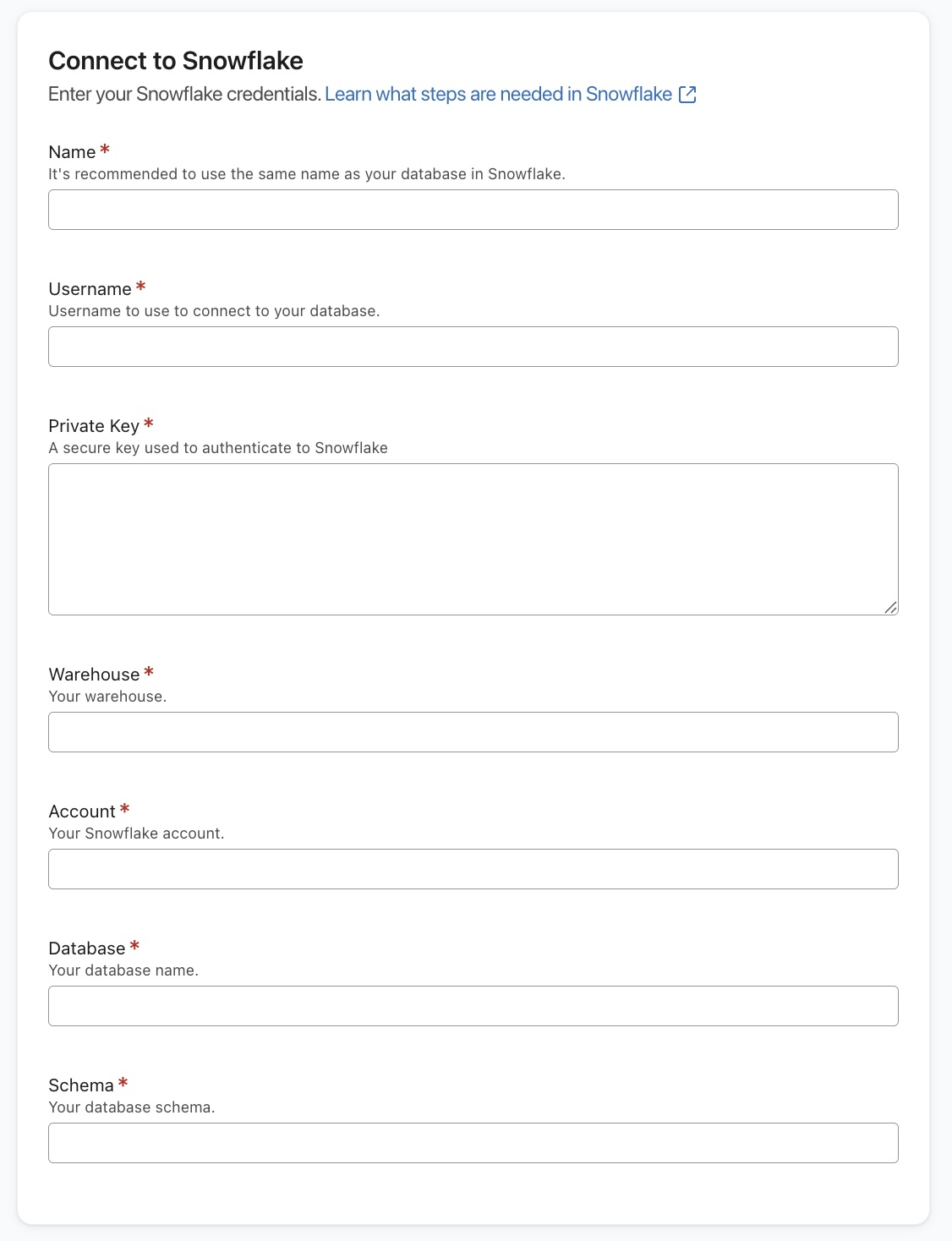

Once configured as a destination, connect your warehouse with Klaviyo using the following set of credentials:
- Name: It’s recommended to use the same name as your database in Snowflake.
-
Username: Username to connect to your database. This should be the same as user_name in the setup script.
-
Private key: The Snowflake private key generated.
- Warehouse: Your warehouse in Snowflake.
- Account: Your account in Snowflake.
- Database: Your database name. This should be the same as database_name in the setup script.
-
Schema: Your database schema. This should be the same as schema_name in the setup script.
After entering your credentials for the data warehouse you are syncing with, choose the data you want to sync from Klaviyo.

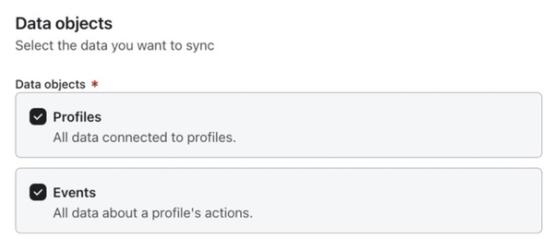

Data objectsData objects

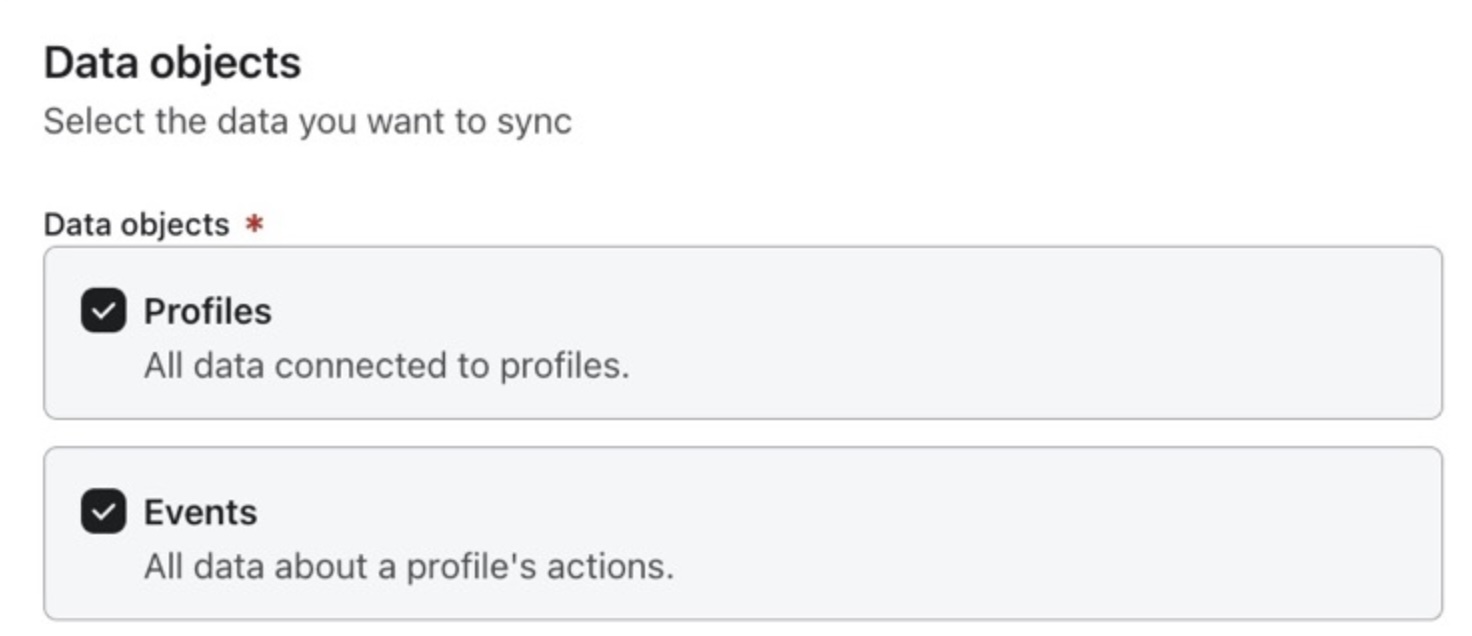

In the Data objects section you can choose to sync all profile data, just specific event data, or both types of data by checking the applicable box(es) next to each option.
Klaviyo uses a nested JSON structure when sending data to your data warehouse. Profiles and events are each sent as a single table, allowing you to query against 1 table instead of a large number of potential table names in your data warehouse.
Syncing all data from Klaviyo may cause you to incur additional charges from your data warehouse.
Integrations to exclude

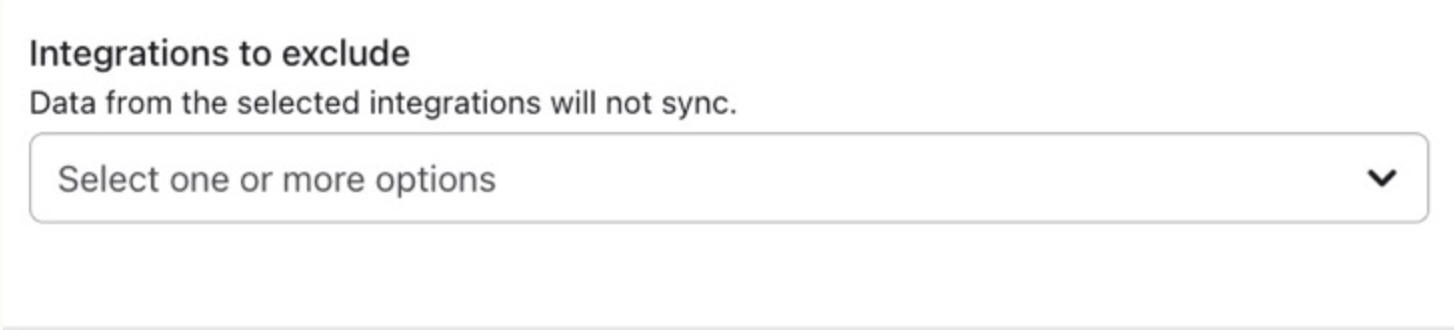

In the Integrations to exclude field, you can select the specific integration(s) that you want to exclude in the data warehouse sync. This is helpful if you want to remove a specific integration’s data that you may have already connected to Klaviyo from syncing as well.
Excluding specific integration data is only for events data, and does not exclude profile data.

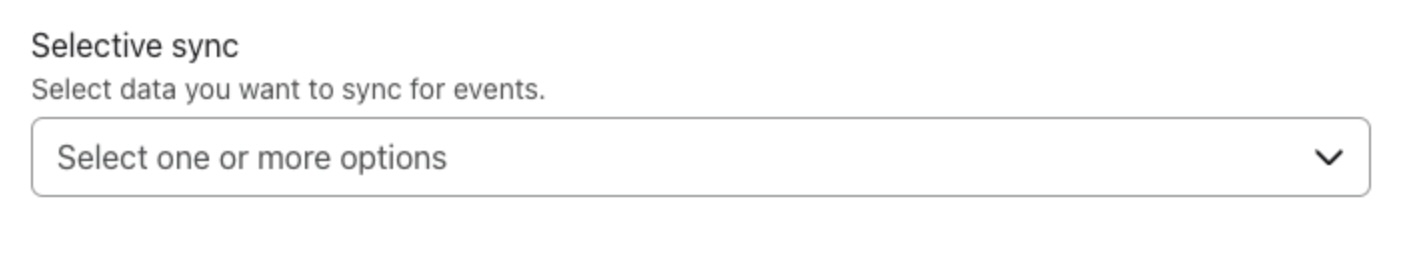

Selective sync

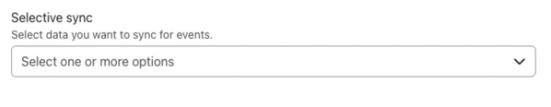

In the Selective sync field, you select the specific events that you want to sync to your data warehouse from Klaviyo. By default, all events are included. When you set specific events to sync with this field, only the selected events will sync.
This field will only appear if you select the Events data object.
Select how often your data will sync

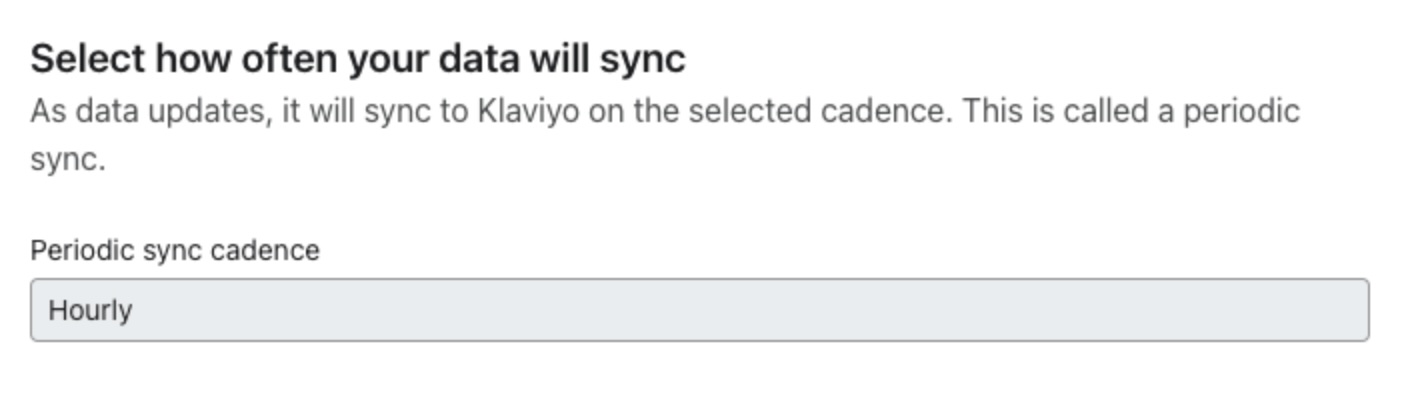

The value set for the Periodic sync cadence field in the section called Select how often your data will sync defines how frequently a sync will occur from Klaviyo to your data warehouse.
Periodic sync cadence is set to be hourly by default and cannot be changed.

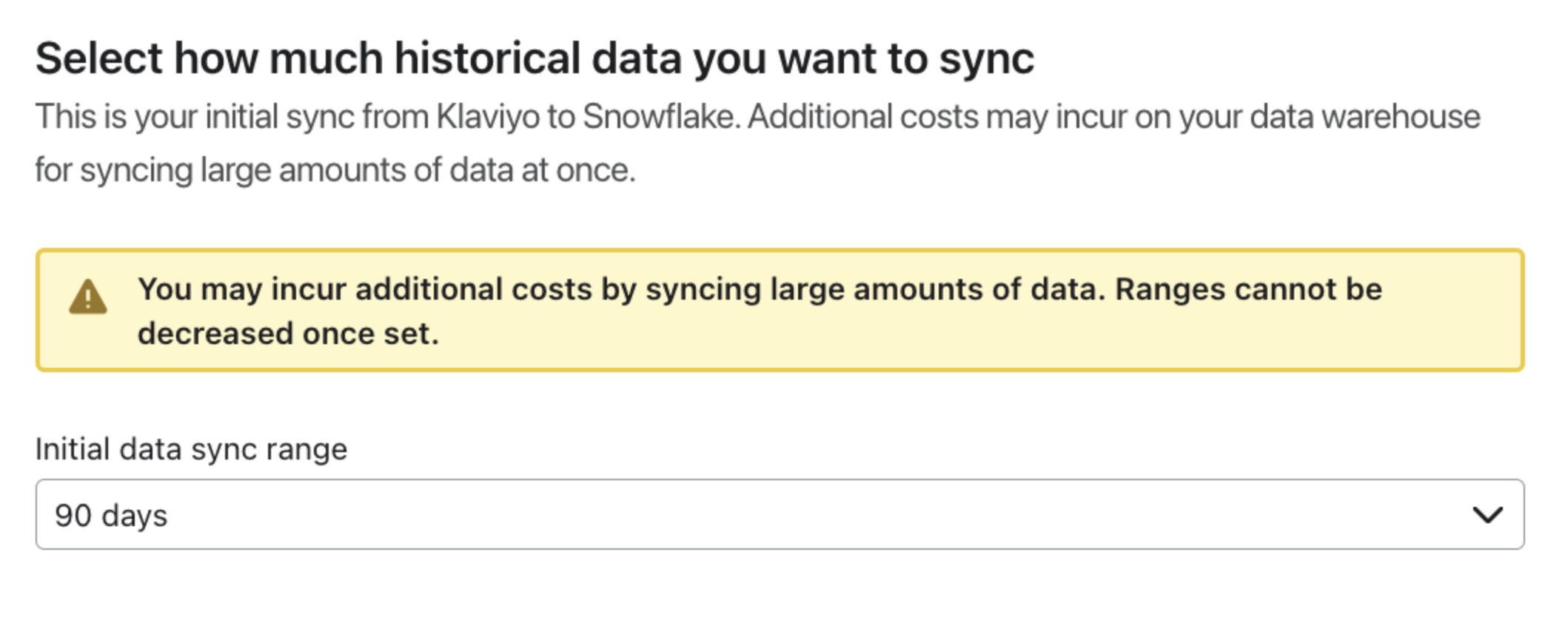

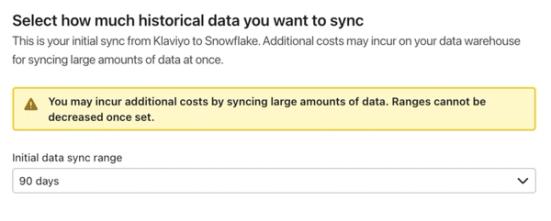

Select how much historical data you want to sync
In the Select how much historical data you want to sync section, you can define how much historical data you'd like to sync from Klaviyo to your data warehouse during the initial connection. You can pick:
- 30 days
- 90 days
- 1 year
- All time
You may incur additional costs from your data warehouse if syncing a large amount of data at once.

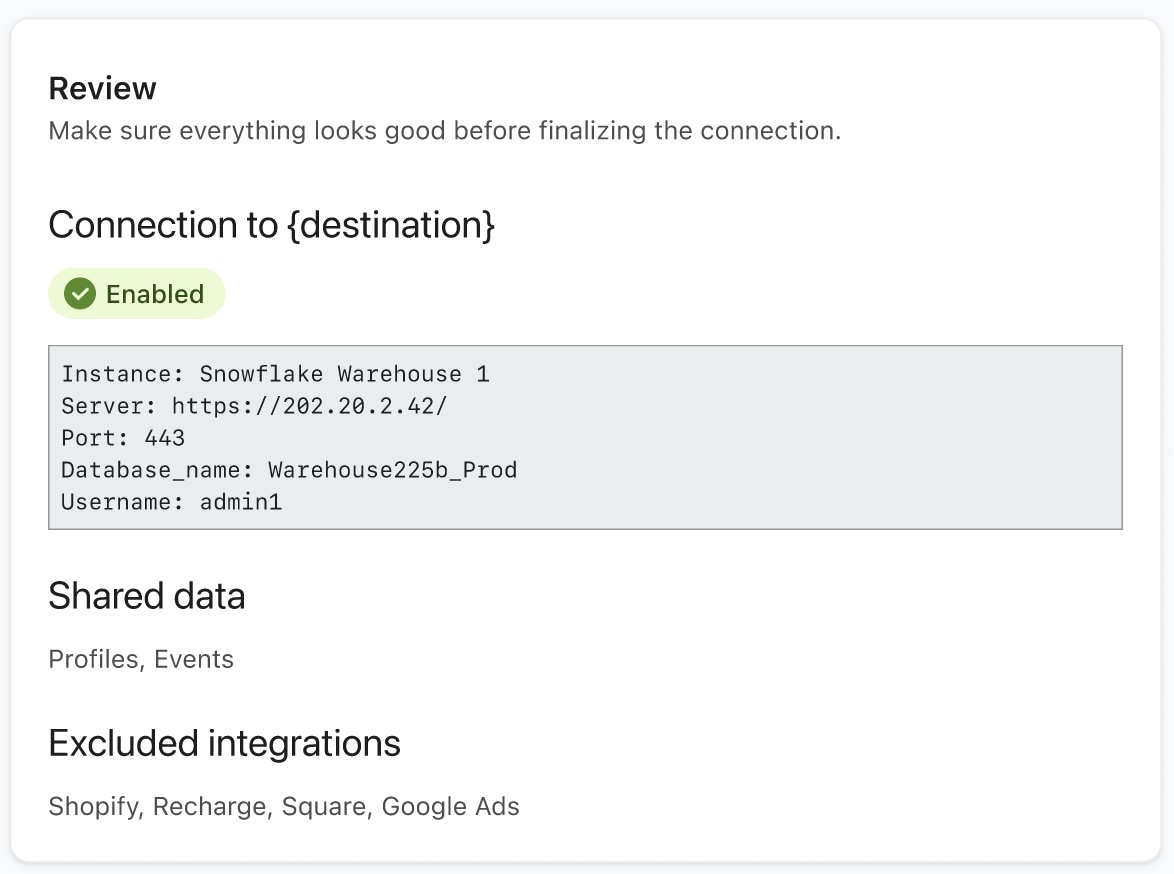

Sync review
Once you have connected your integration, if the setup was successful, you will see a final screen noting that the connection is Enabled, along with:
- Details of the sync you setup.
- What data is being shared (profiles, events, or both).
- Any excluded integrations.
If your sync was not successfully connected, you will instead see an Unable to connect status, along with options to either retry your connection or to edit the information in your credentials.

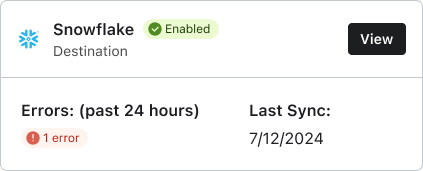

Once you have successfully connected your data warehouse, you will be brought back to the main Data syncing list page. Here you will see your:
- Warehouse Destination
- The Enabled status
- Any potential errors that may have occurred with your sync in the past 24 hours.
- The last sync that occurred along with a timestamp of this event.
Since you will only ever be able to connect one destination, you will only see one destination reflected in this list view.
Data syncing dashboardData syncing dashboard

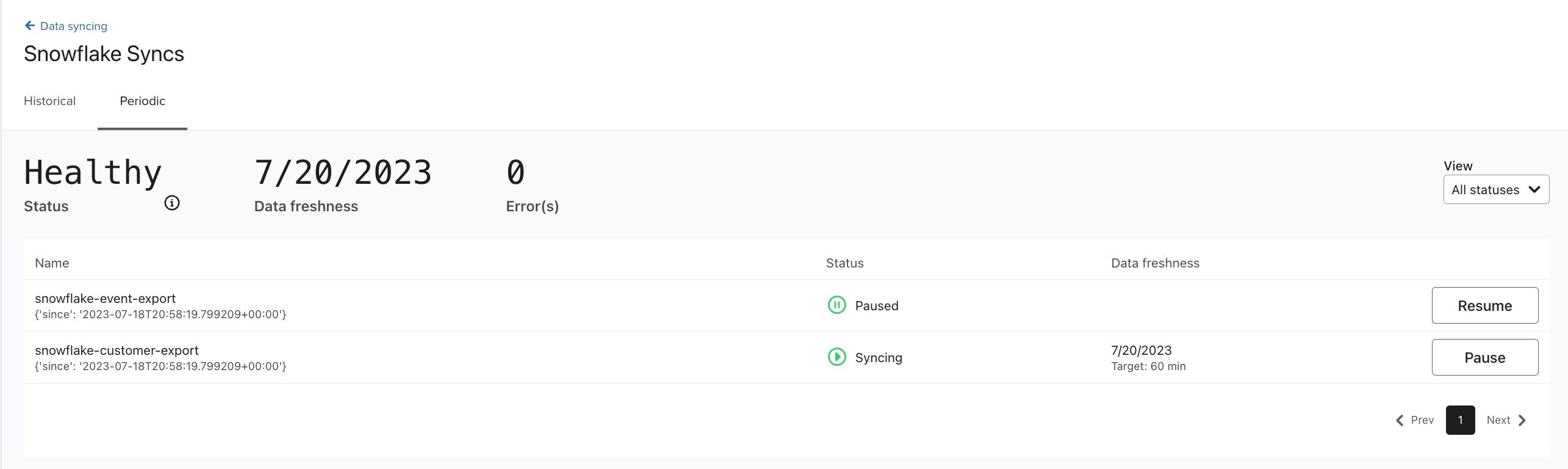

Once you have a successful connection, click on your integration from the Data syncing list page. From here you will be brought to the data syncing dashboard providing historic and current information on the data syncs that have run.
Here you’ll see the syncing information split into 2 tabs:
- Historical
- Periodic
Historical
The Historical tab has logs that show the status of your historical data syncs. Historical syncs refer to the syncing of your existing data from Klaviyo to your data warehouse when you establish a connection.
You’ll see the following information for each sync:
-
Name
The data is being included in the sync. -
Status
Status and potential progress of the sync with an estimated percentage or potential errors noted. These statuses could include:
-
Completed
Your data finished syncing for this one-off sync. It will not resync again automatically. -
Scheduled
When the next sync is scheduled to automatically run. -
In progress
Data is actively syncing to your data warehouse with an estimated percentage of completion. -
Errored
An error occurred but Klaviyo will keep trying to re-establish a connection. Depending on the integration, this timing may slightly differ. -
Failed
The sync completely failed even after trying to re-establish a connection. This means that you will need to review your configuration settings or even data warehouse setup. -
Paused
You have paused the sync manually. -
Disabled
The sync was disabled because the integration itself was disabled or removed.
-
Completed
-
Started on
Start time of the sync. -
Ended on
End time of the sync.
Periodic

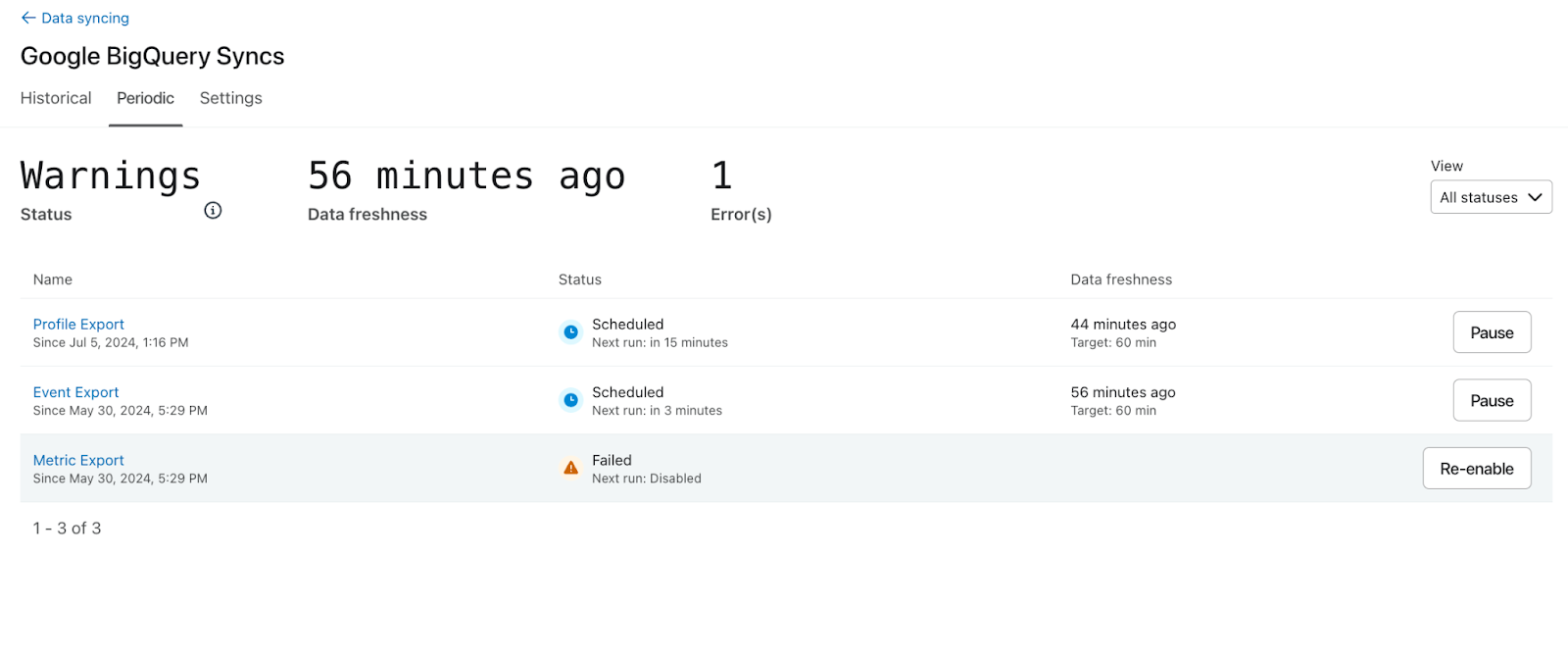

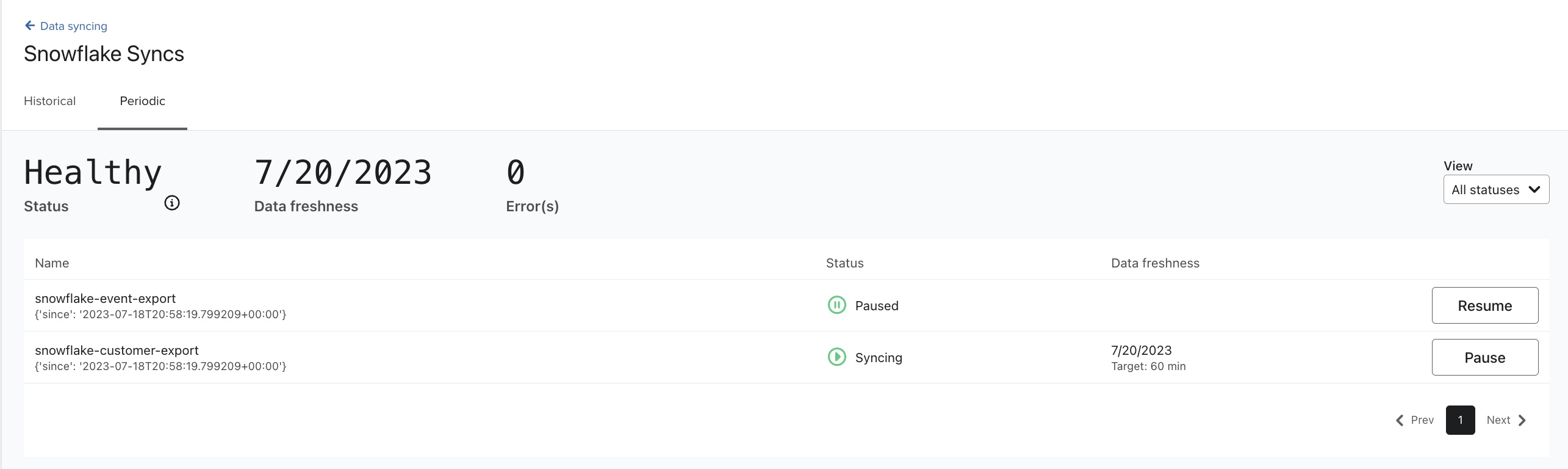

The Periodic tab has logs that show the status of your periodic syncs. As customers continue to interact with your brand and new data is created, it will be routinely sent to your data warehouse. When setting up a data warehouse connection, periodic syncs will occur every hour.
You’ll see the following information for each sync:
-
Name
The data is being included in the sync. -
Status
Status and potential progress of the sync with an estimated percentage or potential errors noted. These statuses could include:
-
Completed
Your data finished syncing for this one-off sync. It will not resync again automatically. -
Scheduled
When the next sync is scheduled to automatically run. -
In progress
Data is actively syncing to your data warehouse with an estimated percentage of completion. -
Errored
An error occurred but Klaviyo will keep trying to re-establish a connection. Depending on the integration, this timing may slightly differ. -
Failed
The sync completely failed even after trying to re-establish a connection. This means that you will need to review your configuration settings or even data warehouse setup. -
Paused
You have paused the sync manually. -
Disabled
The sync was disabled because the integration itself was disabled or removed.
-
Completed
-
Data freshness
Data freshness refers to how up-to-date your data is. For example, if a sync has a freshness of 2 minutes, this means that any new data created in Klaviyo in the past 2 minutes is not yet in your data warehouse. - Buttons to Pause, Resume, and re-enable individual syncs.
Removing data warehouse connections
To delete a data warehouse connection from your Klaviyo account, navigate to the Integrations page in Klaviyo from the account menu in the bottom left corner.

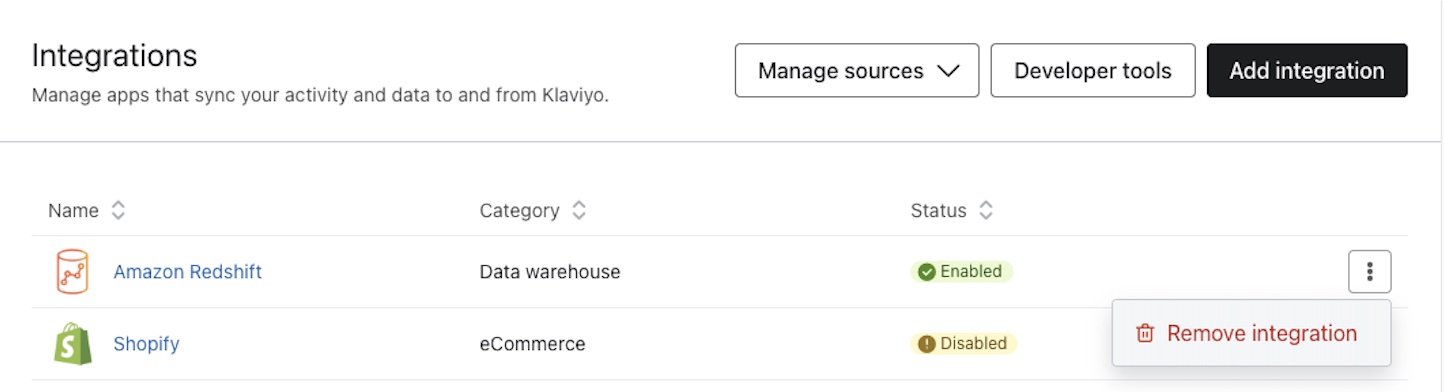

On Integrations page, open the menu next to your data warehouse integration select Remove integration to remove the connection.
View error logs
If you are experiencing issues with data syncing between Klaviyo and your data warehouse, viewing the associated error logs can provide additional information around the cause of the issue.

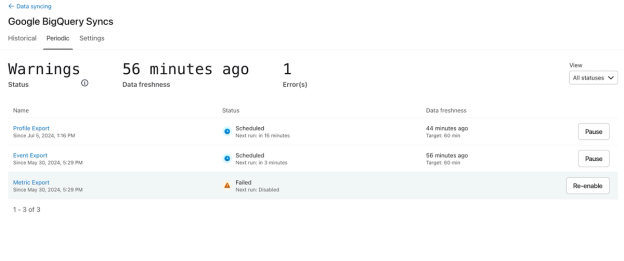

To view errors, click into your warehouse destination on the Syncing page. On both the Historical and Periodic sync tabs you’ll see a list of the exports and their status, along with an indicator showing whether there are any active errors.
To view more details about a particular error, click into the export experiencing the failure.

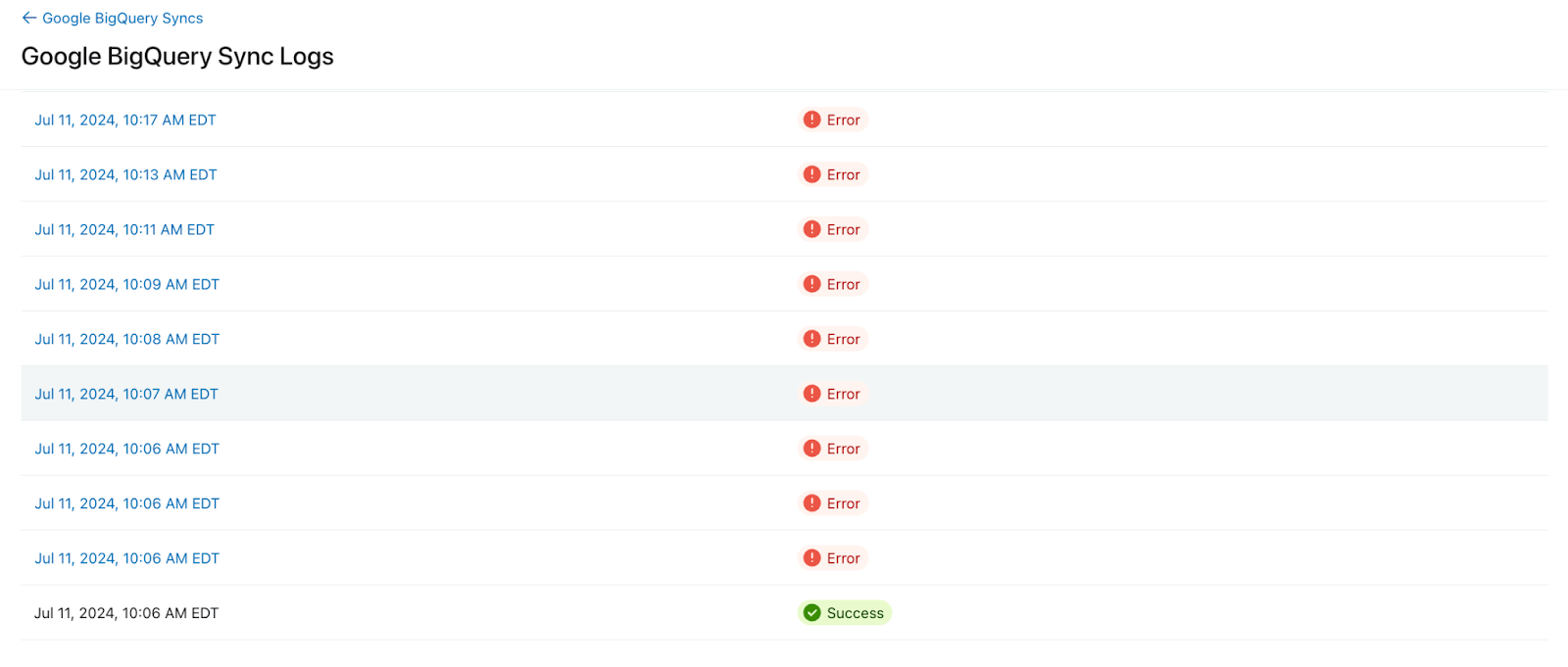

Here, you’ll see a timeline of the outbound syncs, along with an error or success message based on the status of the sync.

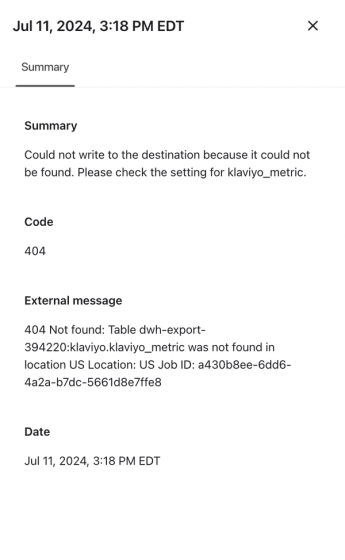

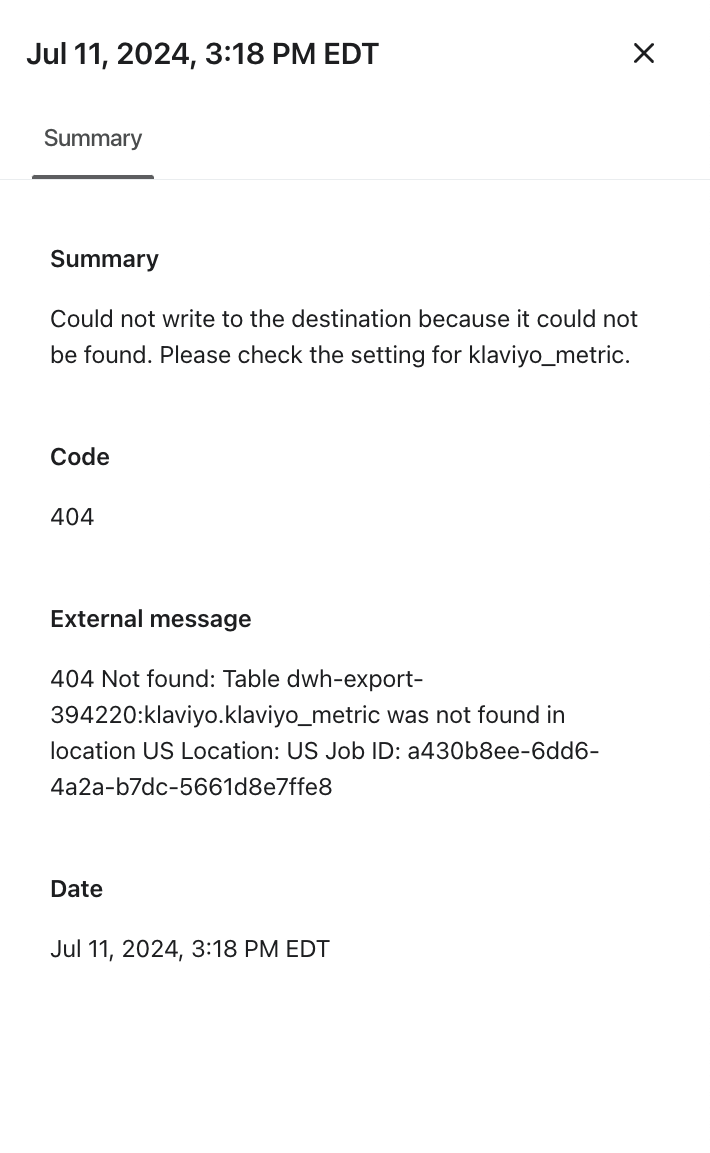

Clicking into a specific error will open a drawer with the following information:
-
Summary
A brief description of the error returned by the data warehouse. -
Code
The error code for the error. -
External message
The actual error message returned by the data warehouse. -
Date
The date and time of the error.
